At XC Machining, our Servicios de mecanizado CNC de 5 ejes are designed to handle the most complex geometries and tightest tolerances. With our advanced technology and experienced team, we provide solutions that ensure high accuracy, reduced setup times, and optimized machining efficiency, making us the ideal partner for your next high-precision project.

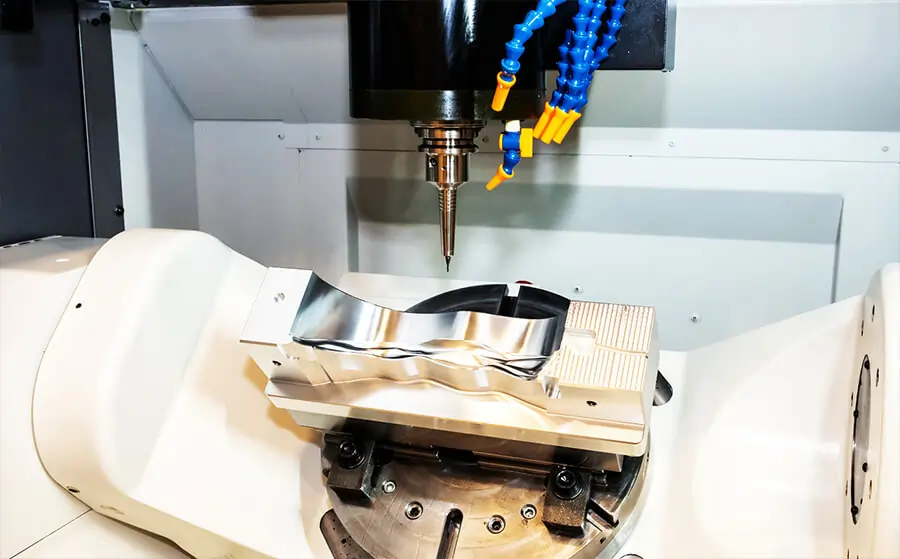

As a dedicated 5 Axis CNC machining center manufacturers, we specialize in creating parts that require intricate angles, contours, and tight tolerances. Our 5-axis capability allows us to machine parts in a single setup, minimizing errors and improving cycle times, while maximizing the overall efficiency of the manufacturing process.
Need a prototype? Our servicios de mecanizado cnc de 5 ejes are designed to rapidly produce high-fidelity prototypes for testing and evaluation. With precise material handling and advanced capabilities, we deliver parts that match your design intent while speeding up your time-to-market. Our multi-axis Servicios de mecanizado CNC leverage 5-axis capabilities to create components with higher precision, complexity, and versatility. From prototypes to production runs, we use the most advanced tools and techniques to ensure that your parts are produced to the highest standards of quality.
En nuestras instalaciones, dispone de una gran variedad de máquinas para la producción de piezas, incluidos tornos CNC, fresadoras, equipos de moldeo por inyección, tecnología de impresión 3D de última generación y mucho más.
En XC Machining, intentamos que su elección no esté limitada, por lo que le ofrecemos más de 60 materiales entre los que elegir para sus prototipos y productos.
XC Machining pone a su disposición ingenieros de servicio con los conocimientos necesarios para responder a sus consultas sobre fabricación. Nuestros ingenieros están siempre sobre el terreno para ofrecer un valioso asesoramiento.
Ofrecemos una amplia gama de tratamientos superficiales y acabados personalizados en piezas sólidas de metal y plástico, como anodizado, pintura en spray, pulido por vapor, chorro de arena, serigrafía, etc.
Mecanizado CNC de 5 ejes provides exceptional precision and flexibility for complex parts, achieving tight tolerances and high surface finishes that are critical for industries like aerospace, medical, and automotive.
| Descripción | Especificación |
| Tolerancias de precisión | Achievable tolerances as tight as +/- 0.0005 inches (0.0127 mm) |
| Acabado superficial | Ra 16 µin (0.4 µm) to Ra 32 µin (0.8 µm) |
| Espesor mínimo de pared | 0.3mm |
| Minimum End Mill Size | 0.1mm |
| Minimum Drill Size | 0.4mm |
| Tamaño máximo de la pieza | CNC Milling: 2000×1500×1000 mm |
| Minimum Part Size | 5×5×5 mm |
| Volumen de producción | Prototyping: 1-100 pcs |
| Low Volume: 101-2,000 pcs | |
| High Volume: Above 2,000 pcs |
6061, 7075, 2024, 5052
303, 304, 316, 17-4 PH
1018, 1045, 4140, 12L14
Grade 2, Grade 5 (Ti-6Al-4V)
C360 (Free-Cutting Brass), C464 (Naval Brass)
C110 (Electrolytic Tough Pitch Copper)
A2, D2, O1, H13
ABS, Nylon (PA), PEEK, Delrin (Acetal), PTFE, UHMW
Inconel 625, Inconel 718, Hastelloy, Monel

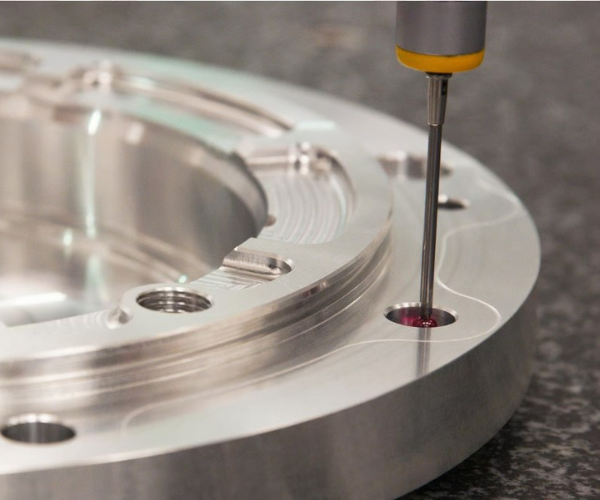

5-axis CNC machining enables precise and intricate surface finishes, making it ideal for parts with complex geometries and tight tolerances.
Sanding smooths 5-axis machined parts, removing rough edges and imperfections while ensuring that intricate components maintain precision and functionality.

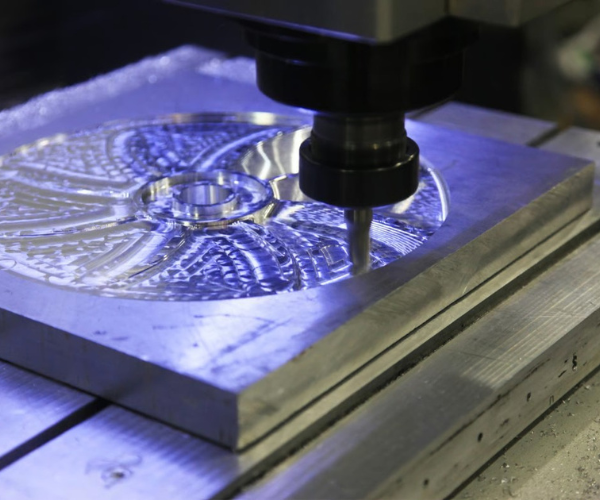

Polishing gives 5-axis machined parts a smooth, glossy finish, essential for improving part appearance and reducing surface roughness for functional or aesthetic applications.
Electropolishing improves the surface smoothness of stainless steel parts, often used in medical, aerospace, and other high-precision industries where corrosion resistance is vital.
Brushing creates a uniform matte finish on complex 5-axis machined parts, enhancing surface appearance and reducing reflectivity for specific industrial applications.
Anodizing is used to increase the surface hardness and corrosion resistance of aluminum parts produced by 5-axis machining, especially in aerospace and medical industries.
Vibratory finishing helps remove small burrs and smooth out intricate geometries created by 5-axis machining, ideal for parts requiring a flawless finish.
XC Machining es un socio de confianza para las industrias que exigen complejidad, fiabilidad y precisión. Nuestra cara experiencia en la producción de millones de componentes de alta calidad aporta una pericia inigualable a cada proyecto.
Nuestros servicios abarcan una amplia gama de aplicaciones para garantizar que satisfacemos las necesidades exclusivas de cada sector con sumo cuidado.
XC Machining apoya a la industria del automóvil con soluciones de mecanizado CNC de vanguardia, permitiendo la producción de piezas complejas que impulsan la eficiencia
Para la industria de semiconductores, XC Machining ofrece servicios de mecanizado CNC que satisfacen las exigencias de alta precisión necesarias para la fabricación de componentes
Nuestros servicios de mecanizado CNC son fundamentales en el sector energético, donde la precisión y la durabilidad son esenciales. XC Machining presta apoyo a
XC Machining es un socio de confianza en el sector de la maquinaria industrial, que ofrece soluciones de mecanizado CNC que garantizan la robustez y la
XC Machining ofrece soluciones de mecanizado de precisión para la industria electrónica, produciendo componentes intrincados que cumplen las exigentes normas requeridas para
XC Machining ofrece servicios especializados de mecanizado CNC para la industria de las comunicaciones, elaborando piezas de precisión que son vitales para la infraestructura
Get reliable vacuum casting services for high-quality prototypes and production parts at competitive prices. XinCheng offers highly detailed casting parts with consistent quality.
Fabricación de chapas metálicas uses corte, bending, and forming techniques to create precision metal components for industrial, commercial, and manufacturing applications.
Leverage our moldeo por inyección services for high-quality prototypes and custom parts, with expert support, competitive pricing, and faster production cycles for reliable, efficient results.
How much does your 5-axis milling service cost?
The cost of 5-axis CNC milling services varies depending on factors such as part complexity, material type, and required precision. Generally, pricing ranges from $75 to $250 per hour, depending on these factors. To receive a more accurate estimate, it’s best to provide detailed drawings and specify material requirements. While 5-axis machining typically has a higher hourly rate, it reduces overall production time and the number of setups needed, making it cost-effective in the long run.
When should I choose 5-axis CNC machining?
5-axis CNC machining is ideal for parts with complex geometries, intricate details, or when high precision is critical. This technology is perfect for parts that require machining from multiple angles in a single setup or when various tool positions are necessary. Industries such as aerospace, medical, and automotive often rely on 5-axis machining to meet strict design specifications, tight tolerances, and reduced lead times, while also improving surface finishes.
What’s the difference between 5-axis machining and 3-axis machining?
The main difference between 5-axis and 3-axis machining is in the number of axes and the complexity of the parts they can handle. 3-axis machining works along the X, Y, and Z axes and is suitable for parts with simpler shapes. However, it often requires multiple setups and repositioning to machine all sides of the part. On the other hand, 5-axis machining includes two additional rotational axes, allowing the tool to approach the part from virtually any direction. This enhances the ability to machine more complex shapes, reduces setup time, and improves precision.
What is 5-axis CNC machining?
5-axis CNC machining is an advanced CNC technology that enables simultaneous movement of the cutting tool or part along five axes: X, Y, Z, and two rotational axes (A and B). This allows for the creation of highly complex shapes and features in a single setup, improving precision and efficiency. It’s commonly used in industries like aerospace, automotive, and medical for manufacturing intricate components.
How does a 5-axis CNC machine work?
A 5-axis CNC machine works by moving the cutting tool or part along five directions: the X, Y, and Z linear axes, and rotating around two additional axes (A and B). This allows for machining of complex shapes and geometries without needing multiple setups or repositioning, minimizing human error and ensuring high accuracy. The machine’s advanced software precisely controls each movement to meet tight design specifications.
What is the tolerance of 5-axis CNC machining?
5-axis CNC machining can achieve extremely tight tolerances, often tighter than ±0.001 inches, depending on the material and the complexity of the part. The advanced machines and rigorous inspection processes at XC Machining ensure that all parts meet the exact specifications and GD&T (Geometric Dimensioning and Tolerancing) standards, delivering highly precise and high-quality components.
