5-Axis CNC Machining Services
XC Machining provides 5-axis simultaneous CNC machining for parts requiring complex contoured surfaces, undercuts, compound angles, and multi-face features in a single setup. We machine turbine blades, impellers, aerospace structural components, medical implants, and precision housings in 60+ metals and plastics with tolerances to ±0.0127 mm.
- All uploads are secure and confidential
How Does 5-Axis CNC Machining Achieve Superior Accuracy?
Five-axis CNC machining positions the cutting tool at any angle relative to the workpiece using three linear axes (X, Y, Z) plus two rotational axes (A and B). Unlike 3-axis machining, which requires multiple setups and re-fixturing to access different part faces, 5-axis machines reach all surfaces in a single clamping. This eliminates re-fixturing alignment errors, reduces cumulative tolerance stack-up by 40–60%, and achieves ±0.0127 mm dimensional accuracy on multi-surface parts.
Five-axis machining also improves surface finish quality. The machine maintains optimal tool orientation throughout the cutting path, keeping the tool engaged at its most effective cutting angle. Shorter tool overhangs reduce vibration and chatter, producing Ra 0.4–0.8 μm surface finishes directly off the machine — often eliminating the need for secondary polishing operations.
These combined accuracy and surface finish advantages make 5-axis CNC machining the preferred process for aerospace turbine components, medical implants, and other parts where dimensional precision and surface quality are non-negotiable.
What Is 5-Axis CNC Machining and How Does It Differ?
Five-axis CNC machining adds two rotational axes (typically A and B) to the standard three linear axes (X, Y, Z) of conventional CNC milling. This gives the cutting tool access to five sides of the workpiece without re-fixturing, enabling complex part geometries in a single setup.
XC Machining distinguishes between two 5-axis approaches: simultaneous 5-axis machining, where all five axes move continuously during the cut for contoured surfaces like turbine blades and impellers, and 3+2 positioning (also called indexed 5-axis), where the two rotational axes lock at fixed angles while the three linear axes perform the cutting for prismatic multi-face parts like housings and manifolds. Both approaches reduce total machining time by 40–60% compared to multiple 3-axis setups.
Aerospace, medical device, automotive, robotics, and semiconductor engineers use XC Machining’s 5-axis capability for titanium, Inconel, cobalt-chrome, aluminum, and PEEK parts requiring complex contoured surfaces and tight tolerances.
How Does 5-Axis CNC Machining Work at XC Machining?
Five-axis machines move along X, Y, Z linear axes plus A (tilt) and B (rotation) rotational axes simultaneously. The cutting tool reaches any angle on the workpiece surface without re-fixturing, enabling full 5-side access.
The workpiece is clamped once. All five sides are machined in a single setup — eliminating re-fixturing, reducing setup time by 60–80%, and removing cumulative alignment errors that degrade tolerance in multi-setup 3-axis work.
CAM software (Mastercam, NX, hyperMILL) generates collision-free 5-axis toolpaths with optimized lead/tilt angles. Toolpath simulation verifies every movement before machining to prevent crashes and ensure smooth surface-following motion.
The CNC controller coordinates all five axes in real time at feed rates up to 15,000 mm/min, maintaining consistent chip load and cutting force for vibration-free machining at Ra 0.4 μm surface finish.
What Tolerances Does 5-Axis CNC Machining Achieve at XC Machining?
XC Machining holds 5-axis CNC tolerances per the specifications below. Five-axis machining achieves tighter tolerances than 3-axis due to single-setup accuracy and reduced cumulative positioning error.
| Description | Specification |
| Precision Tolerances | Achievable tolerances as tight as +/- 0.0005 inches (0.0127 mm) |
| Surface Finish | Ra 16 µin (0.4 µm) to Ra 32 µin (0.8 µm) |
| Minimum Wall Thickness | 0.3mm |
| Minimum End Mill Size | 0.1mm |
| Minimum Drill Size | 0.4mm |
| Maximum Part Size | CNC Milling: 2000×1500×1000 mm |
| Minimum Part Size | 5×5×5 mm |
| Production Volume | Prototyping: 1-100 pcs |
| Low Volume: 101-2,000 pcs | |
| High Volume: Above 2,000 pcs |
What Technologies Power 5-Axis CNC Machining at XC Machining?
XC Machining 5-axis CNC machines integrate seven core technologies that work together to deliver ±0.0127 mm accuracy, Ra 0.4 μm surface finish, and collision-free machining of complex multi-surface parts.
- Advanced CNC control systems
- Multi-axis CAM software
- High-speed spindle technology
- Servo motors and precision drives
- Tool Center Point (TCP) control
- Collision detection and simulation systems
- Thermal compensation systems
Why Choose XC Machining for 5-Axis CNC Complex Parts?
XC Machining provides 5-axis CNC machining services for parts with intricate angles, contoured surfaces, undercuts, and multi-face features. Single-setup 5-axis machining reduces total cycle time by 40–60% versus multiple 3-axis setups while maintaining ±0.0127 mm accuracy on all machined features.
How Fast Can XC Machining Deliver 5-Axis CNC Prototypes?
XC Machining delivers 5-axis CNC prototypes in 5–7 business days in aluminum, titanium, Inconel, PEEK, and 55+ additional materials. Five-axis prototyping produces functional test parts with the exact contoured surfaces, undercuts, and compound angles of the final design — eliminating the geometry compromises required by 3-axis prototyping. Production runs of 100 to 5,000+ 5-axis parts complete in 10–20 business days with full dimensional inspection.
What Quality and Equipment Does XC Machining Provide for 5-Axis CNC?
Every 5-axis CNC project at XC Machining follows ISO 9001:2015 certified quality procedures with in-process CMM verification, surface roughness measurement, and toolpath simulation before first cut. Our 5-axis department maintains ±0.0127 mm accuracy with full dimensional reporting on every part.
Our 5-axis department operates simultaneous 5-axis machining centers and 3+2 indexed machines with Fanuc/Siemens controllers, 12,000–30,000 RPM spindles, HSK tool interfaces, and work envelopes up to 2000 × 1500 × 1000 mm for large aerospace and industrial parts.
5-axis machinable materials include aluminum 6061/7075, titanium Grade 5, Inconel 625/718, Hastelloy, cobalt-chrome, stainless steel 304/316/17-4 PH, carbon steel 4140, tool steel D2/H13, brass, copper, PEEK, Delrin, and Nylon.
Our 5-axis engineers review CAD files for tool access angles, minimum internal corner radii, undercut depth feasibility, thin wall deflection risk, and fixturing strategy. We recommend simultaneous 5-axis vs 3+2 indexed approach per part geometry. DFM feedback within 12 hours.
5-axis machined parts achieve Ra 0.4 μm directly off the machine. Additional finishes include anodizing (Type II/III), electropolishing, bead blasting, polishing to Ra 0.05 μm, and powder coating for corrosion protection.
What Surface Finishes Are Available for 5-Axis Machined Parts?
XC Machining applies the following finishes to 5-axis CNC machined parts for corrosion resistance, wear protection, cosmetic appearance, and functional surface compliance.
Sanding removes residual tool marks from 5-axis contoured surfaces to Ra 0.8–1.6 μm, preparing complex geometries for anodizing, painting, or electropolishing.
Polishing achieves Ra 0.05–0.4 μm mirror finish on 5-axis machined titanium, aluminum, and stainless steel parts for aerospace, medical implant, and optical applications.
Electropolishing removes 10–25 μm from stainless steel and titanium 5-axis parts via electrolytic dissolution, achieving Ra 0.1–0.4 μm with enhanced corrosion resistance per ASTM B912.
Brushing creates a directional satin grain at Ra 0.4–0.8 μm on aluminum and stainless steel 5-axis parts, reducing glare for instrument panels and enclosures.

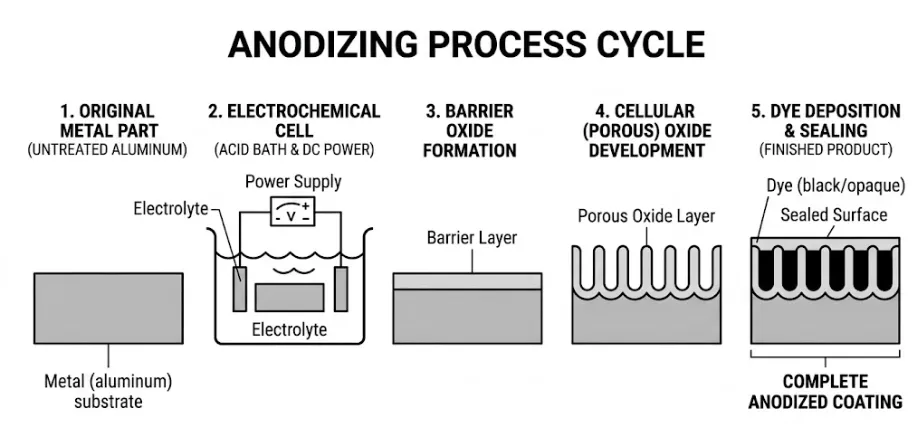

Anodizing (Type II standard, Type III hard-coat to 80 μm) protects 5-axis machined aluminum aerospace and medical parts with Rockwell hardness up to 70 and custom RAL color options.
Vibratory finishing deburrs complex 5-axis machined parts in batch, achieving Ra 0.4–0.8 μm uniform edge quality on production quantities for safe handling and assembly.
What Surface Finishes Are Available for 5-Axis Machined Parts?
XC Machining applies the following finishes to 5-axis CNC machined parts for corrosion resistance, wear protection, cosmetic appearance, and functional surface compliance.
Sand blasting creates a uniform matte texture on CNC milled parts, reducing visible tool marks and preparing surfaces for additional coatings.
Brushing produces a consistent directional grain on accessible metal surfaces, enhancing the appearance of CNC milled housings, panels, and brackets.
Anodizing forms a protective oxide layer on CNC milled aluminum parts, improving corrosion resistance and providing a range of decorative color options.
Powder coating adds a durable protective finish to suitable CNC milled metal components, offering customizable colors and environmental protection.
Polishing smooths accessible surfaces of CNC milled metal parts, reducing surface roughness and creating a refined satin or reflective appearance.
Electroplating deposits nickel, chrome, zinc, or gold layers onto CNC parts for corrosion resistance, conductivity, and hardened wear surfaces.
Electroplating deposits nickel, chrome, zinc, or gold layers onto CNC parts for corrosion resistance, conductivity, and hardened wear surfaces.
Electroplating deposits nickel, chrome, zinc, or gold layers onto CNC parts for corrosion resistance, conductivity, and hardened wear surfaces.
What Materials Are Available for 5-Axis CNC Machining?
XC Machining provides precision 5-axis CNC machining services for a wide range of metals and engineering plastics, including aluminum, carbon steel, stainless steel, titanium, brass, copper, ABS, nylon, polycarbonate, POM, PEEK, and PTFE. Our multi-axis machining capabilities support complex geometries, intricate contours, precision housings, impellers, and custom components for aerospace, automotive, medical equipment, and industrial applications.
Aluminum is lightweight, corrosion-resistant, and highly machinable, making it ideal for 5-axis CNC machined aerospace brackets, complex housings, impellers, and precision structural components. Its excellent strength-to-weight ratio supports intricate designs with demanding dimensional requirements.
Carbon steel offers excellent strength, toughness, and durability for complex 5-axis CNC machined tooling, machine components, mounting brackets, and structural parts. Multi-axis machining enables precise features, angled surfaces, and detailed geometries for demanding industrial applications.
Stainless steel provides excellent corrosion resistance, strength, and durability for complex 5-axis CNC machined components. It is suitable for precision medical equipment parts, marine fittings, industrial valve components, and intricate mechanical assemblies requiring accurate multi-angle machining.
Titanium combines exceptional strength-to-weight performance with excellent corrosion resistance, making it suitable for complex 5-axis CNC machined aerospace components, medical device parts, and high-performance mechanical assemblies. Multi-axis machining supports intricate contours and precision features in challenging titanium alloys.
Brass offers excellent machinability, good corrosion resistance, and reliable electrical conductivity. It is suitable for 5-axis CNC machined precision valve bodies, complex fittings, electrical components, and decorative mechanical parts requiring detailed features and accurate angled surfaces.
Copper provides outstanding electrical and thermal conductivity, making it suitable for complex 5-axis CNC machined cooling components, conductive assemblies, electrical connectors, and precision heat transfer parts. Multi-axis machining enables intricate external features and accessible angled channels.
ABS is a tough, lightweight, and cost-effective engineering plastic with good impact resistance and machinability. It is suitable for 5-axis CNC machined prototype housings, complex enclosures, ergonomic components, and functional plastic parts with multiple angled features.
Nylon provides excellent wear resistance, toughness, and low-friction performance. It is suitable for 5-axis CNC machined mechanical components, complex guide parts, precision fixtures, and wear-resistant assemblies requiring intricate contours and accurate positioning.
Polycarbonate offers excellent impact resistance, dimensional stability, and transparency in suitable grades. It is ideal for 5-axis CNC machined protective housings, complex equipment covers, inspection components, and precision plastic parts with detailed contours.
POM is a precision engineering plastic known for excellent dimensional stability, low friction, and wear resistance. It is suitable for 5-axis CNC machined complex gears, precision mechanical housings, guide components, and intricate parts requiring accurate multi-surface machining.
PEEK is a high-performance thermoplastic with excellent heat resistance, chemical stability, and mechanical strength. It is suitable for 5-axis CNC machined aerospace components, medical equipment parts, complex precision fixtures, and high-performance industrial components with demanding geometries.
PTFE offers exceptional chemical resistance, extremely low friction, and excellent thermal stability. It is suitable for 5-axis CNC machined complex seals, valve components, insulating parts, and specialized chemical-resistant components requiring multiple angled features and controlled machining.
What Materials Can Be 5-Axis CNC Machined at XC Machining?
XC Machining 5-axis machines standard metals, engineering plastics, and exotic high-temperature alloys. Five-axis capability is essential for difficult-to-machine materials like Inconel and titanium where reduced tool overhang and optimized cutting angles prevent tool deflection and extend tool life.
6061, 7075, 2024, 5052
303, 304, 316, 17-4 PH
1018, 1045, 4140, 12L14
Grade 2, Grade 5 (Ti-6Al-4V)
C360 (Free-Cutting Brass), C464 (Naval Brass)
A2, D2, O1, H13
C110 (Electrolytic Tough Pitch Copper)
ABS, Nylon (PA), PEEK, Delrin (Acetal), PTFE, UHMW
Inconel 625, Inconel 718, Hastelloy, Monel
Our 5-Axis CNC Machining Services Prototype Manufacturing Capabilities
Provides injection molding for prototypes and custom parts, emphasizing expert support, competitive pricing, and faster production cycles.
Get reliable vacuum casting services for high-quality prototypes and production parts at competitive prices. XinCheng offers highly detailed casting parts with consistent quality.
Uses cutting, bending, and forming techniques to produce precision metal components suited for industrial, commercial, and manufacturing applications.
Specialist Industries
Bring Your Designs to Life with XC Machining
Experience precision engineering with XC Machining. From detailed prototypes to high-volume production, we’re here to turn your concepts into reality. Contact us today to discuss your project needs!
- Expertise Shared Widely
- Market Reach Expanded
- Advanced Technology Integrated
- Collaborative Innovation Opportunities
- All uploads are secure and confidential
5-Axis CNC Machining Frequently Asked Questions
How Much Does 5-Axis CNC Machining Cost at XC Machining?
Five-axis CNC machining cost depends on material (titanium and Inconel cost more than aluminum), part complexity (number of simultaneous axes required), tolerance requirements (tighter tolerances increase inspection time), and quantity. XC Machining provides project-based quotes rather than hourly rates — upload your CAD file to receive a line-item quote with material, machining, finishing, and shipping costs broken out separately. While 5-axis hourly rates are higher than 3-axis, the reduced setup count and cycle time often make 5-axis more cost-effective per part.
When Should You Choose 5-Axis Over 3-Axis CNC Machining?
Choose 5-axis when: (1) the part has contoured surfaces requiring simultaneous multi-axis tool motion (turbine blades, impellers), (2) five or more faces need machining (housings, manifolds), (3) undercuts or compound angles prevent 3-axis tool access, (4) tolerance requirements below ±0.025 mm demand single-setup accuracy, or (5) reducing total setups from 4–6 to 1 improves cost per part. XC Machining recommends 5-axis vs 3-axis during DFM review.
What Is the Difference Between 5-Axis and 3-Axis CNC Machining?
Three-axis CNC machines move the cutting tool along X, Y, and Z linear axes — ideal for prismatic parts with pockets, slots, and flat surfaces. Parts requiring access to more than 3 faces need multiple setups. Five-axis machines add A (tilt) and B (rotation) axes, enabling the tool to reach any surface angle in a single clamping. This reduces setup count from 4–6 to 1, eliminates re-fixturing error, and achieves ±0.0127 mm versus ±0.025 mm typical on 3-axis multi-setup work. XC Machining offers both 3-axis and 5-axis CNC services.
What Is 5-Axis CNC Machining?
Five-axis CNC machining simultaneously controls three linear axes (X, Y, Z) and two rotational axes (A and B) to position the cutting tool at any angle relative to the workpiece. This produces complex contoured surfaces, undercuts, and compound-angle features in a single setup. XC Machining uses both simultaneous 5-axis (continuous motion for sculptured surfaces) and 3+2 indexed positioning (rotary axes lock at fixed angles for multi-face prismatic parts).
How Does a 5-Axis CNC Machine Work Step by Step?
Step 1: The CAM software generates 5-axis toolpaths from your STEP/IGES file with collision checking. Step 2: The G-code is loaded into the Fanuc/Siemens CNC controller. Step 3: The workpiece is clamped once. Step 4: The controller simultaneously coordinates X, Y, Z, A, and B axes at feed rates up to 15,000 mm/min. Step 5: In-process measurement verifies critical dimensions. Result: a finished part with all features machined in one setup.
What Tolerances Can 5-Axis CNC Machining Achieve?
XC Machining 5-axis CNC achieves ±0.0127 mm (±0.0005 inches) on critical dimensions per our tolerance table specifications. Achievable tolerance depends on material (aluminum is more stable than titanium), feature size, and part geometry. All 5-axis parts are inspected on CMM to GD&T (Geometric Dimensioning & Tolerancing) standards with full dimensional reports. Tighter tolerances to ±0.005 mm are achievable on specific features upon request.
