Overmolding Services

XC Machining provides overmolding services for US product teams that need one durable part from more than one material. We mold a second layer, usually an elastomer or plastic, over a molded base. The part is built for performance, comfort and long life. Medical devices and consumer electronics are two examples. All uploads are secure and confidential.
OverMolding - XC Machining

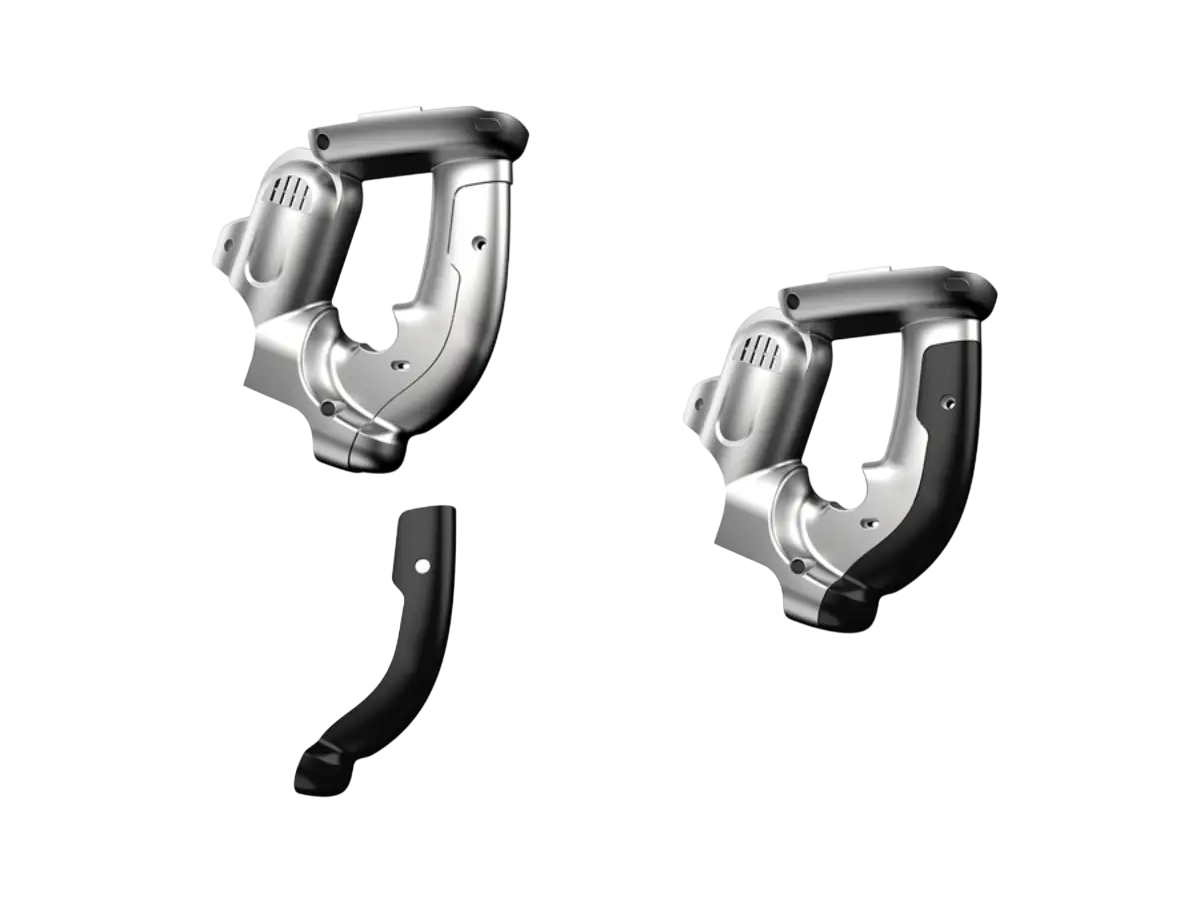

Custom Overmolding Solutions for Your Application

Our custom overmolding solutions improve the function, look and durability of your parts. Our overmolding services suit ergonomic handles, weather-resistant enclosures and shock-absorbing components. XC Machining delivers overmolded parts in both small runs and large-scale production.

OverMolding - XC Machining

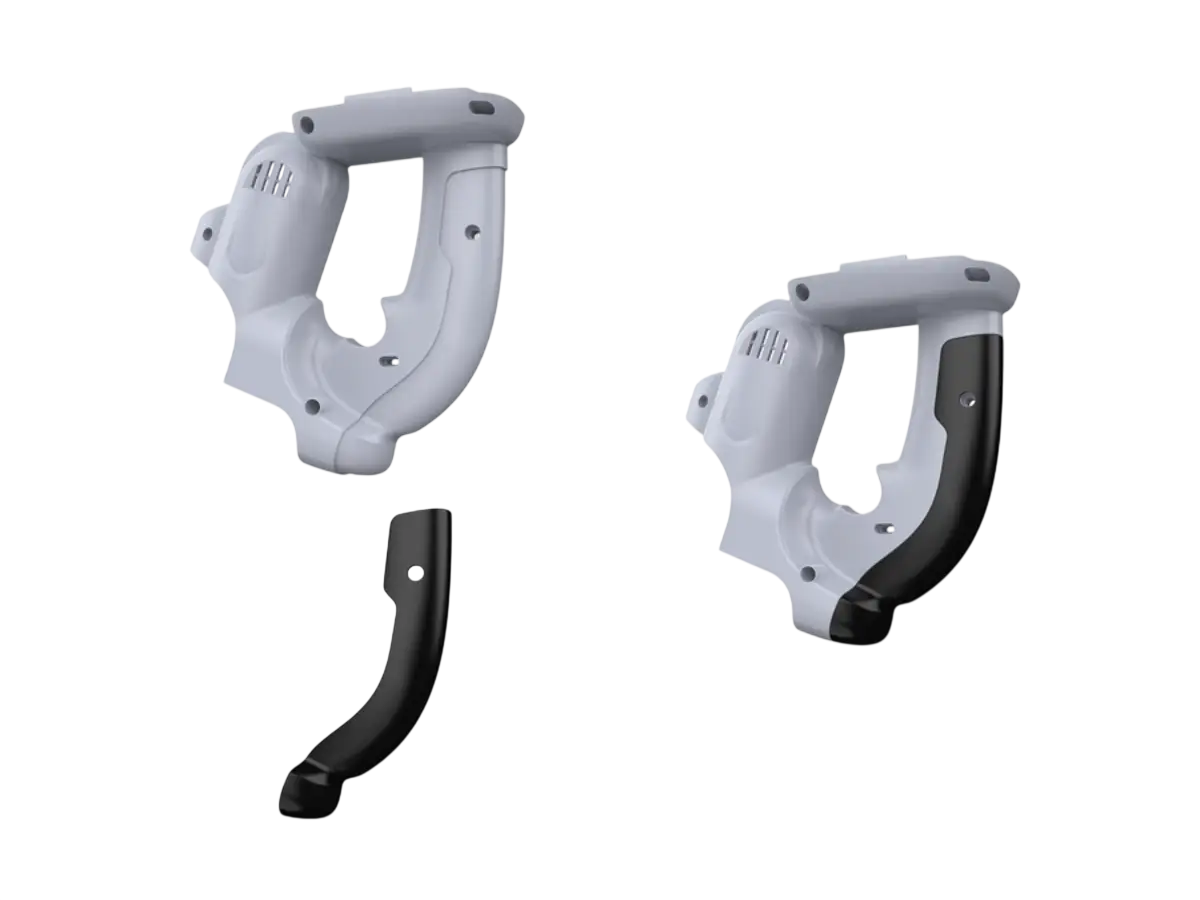

Two-Shot Molding for Multi-Material Parts

Our plastic overmolding services use a wide range of plastics. As two-shot molding experts, we combine two distinct materials in one molded part. The multi-material result is stronger, more versatile and gains extra function. See our injection molding page for single-material parts.

Overmolding or Insert Molding: Which Fits?

Both processes build a part in layers, but they bond different materials. The table shows the split. Our engineers confirm the choice in design review.

PointOvermoldingInsert molding
What gets addedA soft plastic (TPE, TPU, LSR) over a rigid plastic baseA pre-formed metal insert inside plastic
ResultA multi-material plastic partA metal-in-plastic assembly
Main purposeSoft-touch grip, sealing and shock absorptionStructural metal, threads and electrical contacts
Typical partsHandles, grips, seals and enclosuresConnectors, threaded fastening points and terminals

When a part needs a metal thread or contact, use insert molding instead. Some parts use both, and XC Machining offers both services.

Tolerances for Overmolding

Overmolding adds a second layer over a molded part. The layer is typically an elastomer or plastic. It improves function and looks in handles, grips and medical devices. XC Machining holds the values below.
SpecificationValue
Precision toleranceAs tight as ±0.002 in (±0.05 mm)
Surface finishRa 16 μin (0.4 μm) to Ra 32 μin (0.8 μm)
Minimum wall thickness0.5 mm
Maximum part size300 x 300 x 300 mm
Minimum part size10 x 10 x 5 mm
Prototyping volume1 to 100 pieces
Low volume101 to 5,000 pieces
High volumeAbove 5,000 pieces
Lead time7 to 10 business days for most projects. Simple parts can ship in 3 days

Why Choose Overmolding with XC

XC Machining makes prototypes and precision parts in one factory, so the base part and the overmold move through one team. Our overmolding services follow your drawing, from one prototype to a production run.
OverMolding - XC Machining
OverMolding - XC Machining
Strong Manufacturing Capabilities

Our facility runs CNC turning lathes, milling machines, injection molding equipment and industrial 3D printing machines. Our CNC machining services can make a metal base for an overmold. Our 3D printing services make quick test bases.

OverMolding - XC Machining
Flexible Material Selection

Your choice stays open. We offer over 60 materials for your prototypes and products. Our materials page lists the range.

OverMolding - XC Machining
24/7 Engineering Support

Service engineers with deep manufacturing knowledge answer your questions at any hour. They advise on materials, bonding and design.

OverMolding - XC Machining
Choice of Custom Finishes

We offer surface treatments and custom finishes on metal and plastic parts, including anodizing, spray painting, vapor polishing, sandblasting and silk screening.

Surface Finishes for Overmolded Parts

Overmolding molds a second layer of plastic around a pre-formed part for ergonomic or protective use. We apply the finishes below. Our surface finishing page lists related options.

OverMolding - XC Machining
Sand blasting

smooths the surface, especially at a seam or excess material, for an even finish and a comfortable grip. On metal inserts it gives an even matte texture that prepares them for coating.

OverMolding - XC Machining
Texturing

a matte or grippy surface that improves feel and prevents slipping, common on tools and ergonomic handles.

OverMolding - XC Machining
Anodizing

applied to aluminum inserts for corrosion resistance and a lasting finish in harsh settings.

OverMolding - XC Machining
Brushing

a uniform matte finish on metal inserts that cuts reflection and improves appearance.

OverMolding - XC Machining

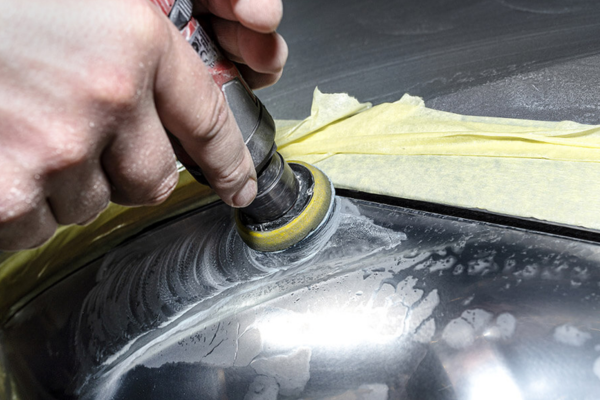

Polishing

a smooth, glossy finish on high-visibility areas of overmolded parts. On metal inserts it gives a satin or reflective surface.

OverMolding - XC Machining

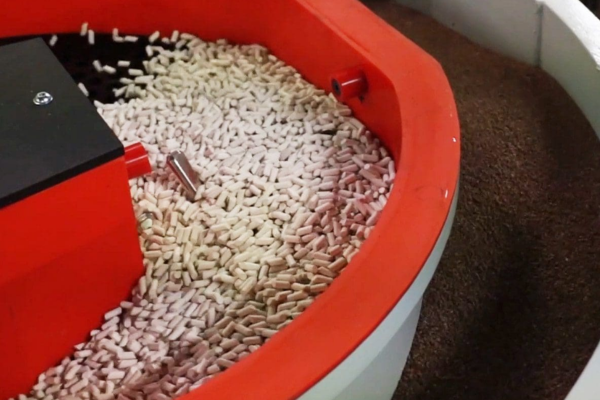

Vibratory finishing

smooths plastic surfaces on parts with intricate shapes and removes excess material left after molding.

OverMolding - XC Machining
Powder coating

a durable colored coat on suitable metal inserts.

Our OverMolding Prototype Manufacturing Capabilities

As a leader in precision manufacturing, we offer a wide range of capabilities that cater to both one-off prototyping and low-volume production. We specialize in delivering geometrically complex and highly cosmetic parts, ensuring the highest quality standards. At XC Machining, we pride ourselves on being the go-to manufacturer for all your OverMolding needs, providing reliable and efficient solutions under one roof.
With 3, 4, and 5-axis CNC machining services, we can produce complex prototypes and parts with precise tolerances. More than 60+ materials are available for you to choose from.

Provides injection molding for prototypes and custom parts, emphasizing expert support, competitive pricing, and faster production cycles.

Get reliable vacuum casting services for high-quality prototypes and production parts at competitive prices. XC Machining offers highly detailed casting parts with consistent quality.

Uses cutting, bending, and forming techniques to produce precision metal components suited for industrial, commercial, and manufacturing applications.

Plastic Materials for Overmolding

XC Machining uses engineering plastics such as ABS, Nylon, Polycarbonate, POM and PEEK, subject to material compatibility. Overmolding joins a preformed base and a second molded material for better grip, protection, sealing and function. Base compatibility, bond strength, processing temperature and use needs decide the material.

OverMolding - XC Machining
ABS

ABS has impact resistance, stable size and a smooth surface, so it works well as a base. It suits ergonomic tool handles, electronic housings, automotive controls and consumer products with soft-touch TPE or TPU overmolds.

Color:
Black, white, natural.
Tensile Yield (MPa)
35 to 55 MPa.
Common Grades
general-purpose, impact-modified and flame-retardant ABS.
OverMolding - XC Machining
Nylon (PA)

Nylon gives toughness, wear resistance and strength to overmolded industrial parts. It suits reinforced handles, automotive connectors, mechanical housings and assemblies that need a durable base and a compatible protective overmold.

Color:
Natural white, black.
Tensile Yield (MPa)
50 to 90 MPa.
Common Grades
PA6, PA66, PA12 and glass-filled nylon.
OverMolding - XC Machining
Polycarbonate (PC)

Polycarbonate gives impact resistance, stable size and toughness. It is widely used as a rigid base for protective electronic housings, handheld devices, instrument covers and precision assemblies with compatible soft-touch materials.

Color:
Transparent, white, black.
Tensile Yield (MPa)
55 to 75 MPa.
Common Grades
general-purpose, optical-grade and flame-retardant PC.
OverMolding - XC Machining
POM (Delrin)

POM has stable size, low friction and wear resistance. It can serve as a base in specialized jobs, but its low surface energy makes bonding hard. It may need mechanical interlocks or specialized material systems.

Color:
Natural white, black.
Tensile Yield (MPa)
60 to 80 MPa.
Common Grades
POM-C, POM-H, Delrin 150 and Delrin 500.
OverMolding - XC Machining
PEEK

PEEK offers heat resistance, chemical stability and strength. It can serve in specialized jobs with a high performance base and compatible polymers for aerospace, electrical and industrial parts.

Color:
Natural beige, black.
Tensile Yield (MPa)
90 to 110 MPa.
Common Grades
unfilled PEEK, PEEK GF30, PEEK CF30 and bearing-grade PEEK.
OverMolding - XC Machining
PTFE (Teflon)

PTFE has exceptional chemical resistance, very low friction and thermal stability. Its low surface energy makes overmold adhesion difficult, and standard PTFE is not injection molded. Assemblies may need surface treatments or mechanical retention.

Color:
White, black.
Tensile Yield (MPa)
20 to 35 MPa.
Common Grades
virgin, glass-filled, carbon-filled and bronze-filled PTFE.

Specialist Industries

XC Machining is a trusted partner for industries demanding complexity, reliability and precision. Our extensive experience in producing millions of high quality components brings unmatched expertise to every project. Our services cover a diverse range of applications to ensure that we meet the unique needs of each sector with great care.

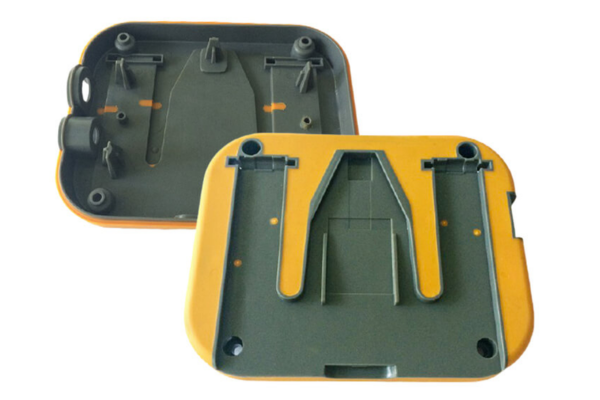

Materials for Overmolded Parts

Engineers rely on XC Machining for fast iterations and durable parts, from prototypes to full-scale production. The groups below show the material range for overmolding projects.
Metal

Stainless steel, titanium, copper alloys and tool steel (by metal injection molding, MIM).

Plastics

Thermoplastics (PP, PE, ABS, PC, Nylon, POM, PS, PMMA, PBT) and thermosets (epoxy, phenolic, melamine).

Ceramic

Alumina, zirconia and silicon nitride (by ceramic injection molding, CIM).

Elastomer

TPE (TPE-S, TPE-O, TPE-U, TPE-V), TPU and LSR (silicone). These elastomers form the soft layer on most overmolded parts.

OverMolding - XC Machining
Get In Touch

Bring Your Designs to Life with XC Machining

Experience precision engineering with XC Machining. From detailed prototypes to high-volume production, we’re here to turn your concepts into reality. Contact us today to discuss your project needs!

Get In Touch With Us!
Prompt response guaranteed within 12 hours

Overmolding FAQs

We control temperature and pressure during overmolding to prevent damage to electronic components. The insulating properties of overmolding materials also protect electronic function while adding durability. Share the temperature limit and layout of your components with our engineers, so the process can be set around the most sensitive part.
We optimize material and design early in prototyping. We use simulation software to reduce trial errors and recycle compatible materials. These steps cut cost and limit environmental impact. Early design checks matter most, because a change to a CAD file costs far less than a change to a finished mold.
Overmolding can add materials that are non-toxic, biocompatible or flame-retardant, which supports compliance with industry standards. Compliance depends on the grade you choose and its certificates, so confirm the datasheet and certificate for your market before you order. Our engineers can help match a grade to your requirement.
Yes. We provide post-processing such as machining, painting and texturing to improve the function and looks of overmolded parts. Sand blasting, polishing and vibratory finishing work on molded surfaces. Anodizing and brushing suit metal inserts. Ask our engineers which finish fits your part, grip need and budget.
Overmolding can reduce assembly time and cost by joining several components into one part. That removes extra fasteners and assembly steps. The saving grows with volume, because the mold cost spreads over more parts. Ask for a quote on both routes to compare your own numbers.
