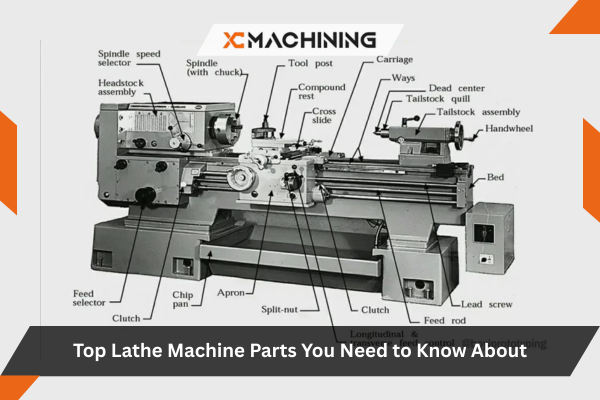

Top Lathe Machine Parts You Need to Know About

Are you standing in a workshop, watching a lathe machine work its magic, turning metal or wood into perfectly shaped parts? Whether you’re a hobbyist or someone managing an industrial setup, understanding lathe machine parts is key to getting the most out of your equipment. From creating smooth, detailed cuts to making precise holes, every part of the lathe plays a crucial role. If you’re looking to improve your understanding of lathe machines or even get more out of your existing setup, it’s essential to know what each part does.

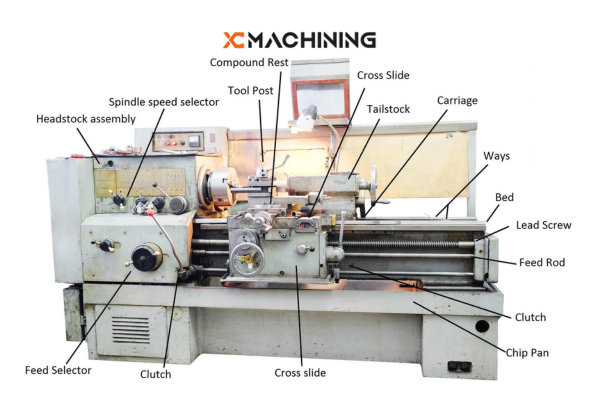

Here’s a breakdown of the top parts you need to know about—and how they work together to give you the best results.

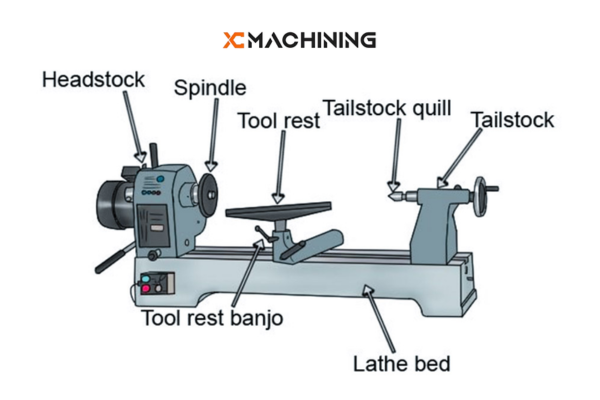

The Power Behind Your Lathe Machine Parts

Think of the headstock as the engine of your lathe machine. It’s the powerhouse that makes everything happen. Located on the left side of the lathe, the headstock houses key components like the spindle, gears, and pulleys. These lathe machine parts are responsible for rotating the workpiece at different speeds, depending on the job you’re doing. The headstock can also be used to control the speed and torque, giving you the versatility to adjust how the lathe works for different materials and cutting needs.

For example, if you’re working with a soft metal like aluminum, you might want to use a higher RPM to achieve a smooth finish. On the other hand, harder materials, like alloy steel, will require slower speeds to avoid tool wear. Without the headstock, there’s no rotation, and without rotation, there’s no cutting or shaping. Whether you’re working on a small project or large-scale manufacturing, the headstock ensures the lathe is operating efficiently. It gives you the power to cut, shape, and drill with precision.

Fun Fact: The headstock can rotate at speeds ranging from a few hundred RPM to several thousand RPM, depending on your project needs.

Tailstock: Stability and Support

Now, let’s talk about the tailstock. This part lathe machine is located at the opposite end of the bed and serves an important role in stabilizing your workpiece during machining operations. When you’re working on longer workpieces or doing operations like drilling or boring, the tailstock provides the support your workpiece needs to stay steady and accurate.

The tailstock is adjustable and can be moved along the bed to fit the length of the material you’re working with. It often contains a live centre, which spins along with the workpiece to reduce friction and ensure smooth, precise operations. This is especially useful when drilling, as it prevents the drill bit from binding or damaging the workpiece.

The tailstock is often used when performing operations that require additional support, like drilling small holes in longer pieces. By ensuring the workpiece remains stable, the tailstock helps improve overall accuracy and prolongs the life of the tool being used.

How the Tailstock Helps:

• Holds long workpieces steady
• Provides extra stability during drilling and boring
• Allows for quick adjustments in position for different workpiece sizes

In many cases, the tailstock can also hold a variety of tools, such as drills, taps, or reamers. This versatility adds to its importance, especially when you are working on more complex machining operations that require different tools during the same job.

Bed: The Foundation of It All

If the headstock is the powerhouse, then the bed is the foundation. The bed provides the solid base that holds everything else together—keeping your lathe stable and secure during operation. Without a solid bed, your lathe wouldn’t be able to hold the headstock, tailstock, or carriage in place.

The bed is usually made of cast iron, which is known for its strength and rigidity. This material choice is essential because any flexing in the bed could lead to inaccurate machining. In most cases, the bed is designed to be both long and flat, ensuring that the machine remains level during operation.

A robust bed also provides vibration resistance, which is key to maintaining accuracy during high-speed operations. Even small amounts of vibration can cause minor inaccuracies in machining, which is why having a solid bed makes all the difference when it comes to precision.

Key Features of the Bed:

• Strong and rigid to support the weight of other parts
• Provides stability for precise operations
• Ensures accurate movement of the carriage and other components

When purchasing a lathe machine, the quality of parts of lathe machine including the bed is one of the most important factors to consider. Machines with weaker beds can lead to problems down the road, including reduced accuracy and more frequent wear on other parts.

Carriage: Precision in Motion

The carriage is a critical part that holds the CNC cutting tools and moves it along the lathe’s bed. It’s responsible for positioning the tool precisely, allowing you to perform detailed tasks like turning, cutting, and boring. The carriage moves along the length of the bed, and it also has the ability to move across the width, ensuring that your tool is always in the right spot.

The carriage is made up of several parts that work in tandem to move the cutting tool with precision. One important feature is the tool post, which allows you to change and adjust the cutting tools as needed. Whether you’re using a turning tool, a parting tool, or a boring bar, the carriage holds the tool firmly and helps you achieve smooth and clean cuts.

Benefits of the Carriage:

• Supports cutting tools and holds them in place
• Moves the cutting tool with precision for accurate shaping
• Allows both longitudinal and cross-motion for diverse tasks

The carriage allows you to control the depth and position of the lathe machine cutting tool, which is crucial when working with different materials or creating intricate designs. The ability to adjust the carriage allows for a high degree of flexibility when turning or shaping materials.

Spindle: The Rotating Heart

The spindle is located inside the headstock and is responsible for rotating the workpiece at the necessary speed. It’s the rotating shaft that holds the material in place while it’s being cut or shaped. The spindle is tightly connected to the motor and is powered by the headstock, allowing it to rotate smoothly.

By controlling the rotation speed of the spindle, you can adjust it for different materials and types of cuts. For example, softer materials, like aluminum, might require a higher RPM to ensure a smooth finish, while harder materials, like steel, will require slower speeds to avoid damaging the tools.

The spindle is one of the most important parts of lathe machine and also plays a role in maintaining the accuracy of the machine. Any inconsistency or wobble in the spindle can result in uneven cuts, which is why regular maintenance and inspection are crucial to keep it running smoothly.

Chuck: Gripping the Workpiece Securely

The chuck is the one of the parts of lathe machine that holds the workpiece securely to the spindle. Think of it as the vice grip of the lathe machine. There are several types of chucks:

• Three-jaw chuck: Great for cylindrical parts like rods
• Four-jaw chuck: More versatile, great for irregularly shaped materials
• Collet chuck: Ideal for smaller, precise workpieces

A reliable chuck ensures that your workpiece won’t slip or shift during the machining process, which is crucial for accurate results. Whether you’re working with a round metal rod or a custom part with an unusual shape, the right chuck can make all the difference.

Why the Chuck Matters:

• Holds your workpiece firmly
• Offers various types to match different workpiece shapes
• Ensures accuracy during operations

Choosing the right chuck can increase productivity and save time. For example, a four-jaw chuck offers greater flexibility and precision for workpieces with more complex shapes, making it the go-to choice for high-precision tasks.

Tool Post: Adjusting the Cutting Tool

The tool post is where the lathe machine cutting tool is mounted on the carriage. It holds the tool in place and allows it to be adjusted in terms of angle and depth. This is key when performing fine cuts or making detailed adjustments to your workpiece.

The tool post is also designed to make changing tools easier. If you need to switch between a rough cutting tool and a finer one, the tool post makes it simple to do so without disrupting your workflow.

Benefits of the Tool Post:

• Allows for quick tool changes
• Provides adjustable angles for fine-tuned cuts
• Helps with making both rough and precise cuts

Many types of lathe machine today come with automated tool changers or quick-change tool posts, which can save you a lot of time during production runs. These advancements make the tool post even more essential for high-efficiency machining.

Cross Slide: Moving Perpendicular to the Bed

The cross slide is part of the carriage and moves the cutting tool perpendicular to the bed. It allows for precise movements in the horizontal direction, letting you make cuts across the diameter of your workpiece. The cross slide is essential for making accurate cuts and ensuring smooth machining.

Without the cross slide, you wouldn’t be able to move the cutting tool in and out from the workpiece, which is necessary for detailed shaping or cutting. Its role is critical when you’re working with more intricate designs or needing to create different dimensions along the length of the workpiece.

How the Cross Slide Helps:

• Moves the cutting tool across the workpiece
• Allows for precise, controlled cuts in the horizontal direction
• Works alongside the carriage for smooth, efficient operation

Compound Rest: Perfect for Angled Cuts

The compound rest is a part of the carriage that allows you to adjust the cutting tool to an angle. This is especially useful when you need to make angular cuts or create tapered sections on your workpiece. The compound rest can be tilted to various angles, giving you flexibility when working with complex shapes.

The compound rest is used in tasks like threading, where the lathe cutting tool needs to be adjusted to a specific angle in order to create threads with the proper shape and size.

Key Benefits of the Compound Rest:

• Allows for angled cuts, perfect for tapered shapes
• Essential for precise threading operations
• Provides flexibility for detailed, intricate work

Lead Screw and Feed Rod: Controlling Movement

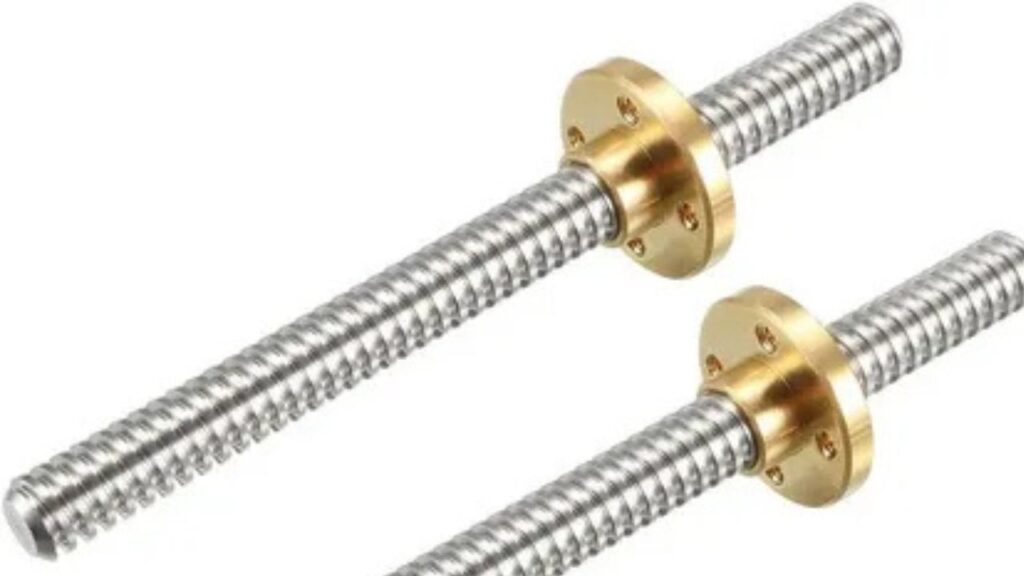

The lead screw and feed rod are responsible for controlling the movement of the carriage along the lathe’s bed. The lead screw helps control the smooth movement of the carriage longitudinally (along the bed), while the feed rod determines how fast the carriage moves.

These components are especially useful when you need to automate the movement of the carriage, ensuring that the lathe operates with minimal effort on your part. Whether you’re creating long, repetitive cuts or moving the carriage for a quick adjustment, the lead screw and feed rod streamline the process.

How the Lead Screw and Feed Rod Help:

• Control the movement of the carriage for accurate machining
• Automate movements for smoother operation
• Essential for both longitudinal and cross-feed movements

Motor: The Driving Force Behind the Lathe

While the headstock might be the powerhouse that rotates the workpiece, it’s the motor that actually drives the entire lathe machine. The motor supplies the power that enables the lathe to operate, turning the mechanical components and allowing for the movement of the spindle, carriage, and other parts. It’s the lifeblood of all types of lathe machine and essential for the machine’s overall function.

Why the Motor Matters:

• Powers the lathe for rotation and movement
• A higher-power motor is essential for larger machines or tougher materials
• A reliable motor ensures smooth operation and consistent results

When choosing a lathe machine, it’s important to consider the motor’s power and speed.

Conclusion

Understanding the different lathe machine parts is crucial for getting the most out of your machine. Each part—whether it’s the headstock, tailstock, or carriage—works together to provide you with the power, precision, and control needed for successful machining. Whether you’re cutting metal for a car part or drilling a hole for a precision component, knowing how these parts function will make your work easier and more efficient.

Now that you know the types of lathe machine parts and what they do, it’s time to dive in and put that knowledge into practice. So, which part of the lathe machine do you think is the most crucial for your work? Let us know your thoughts!
