Introduction
Creating parts with complex curves and precise angles isn’t easy. Traditional methods force manufacturers to stop production, manually reposition components, then start again. This approach wastes hours and drives up costs significantly.
5-axis CNC machining changed everything. The technology cuts from five directions simultaneously while parts stay locked in position. According to recent market data, the industry reached USD 7.3 billion in 2024 with annual growth of 6.09%. Approximately 73,000 units currently operate in manufacturing facilities worldwide. These machines consistently deliver tolerances under 0.005 mm.

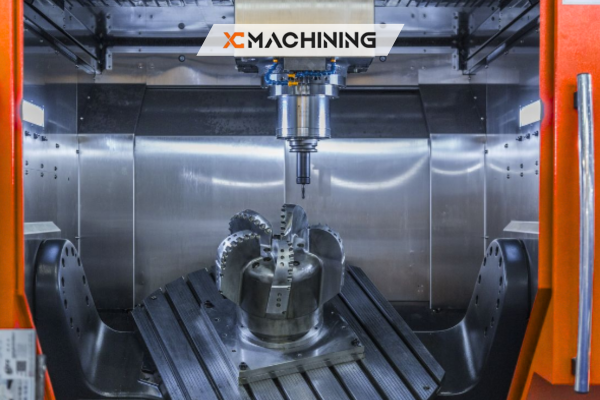

What Is 5-Axis CNC Machining
Picture a robotic arm that moves while rotating continuously during cutting operations. The cutter travels in three straight paths sideways, forward-backward, and vertically. Add two rotation movements, and you get five-axis capability.
Parts remain clamped throughout entire operations. No stopping for manual repositioning means production accelerates 40-60% compared to conventional approaches. Manufacturers complete jobs faster while maintaining higher accuracy standards.
How It Works
The X-axis handles horizontal motion, Y-axis controls depth, Z-axis manages vertical travel. Then A-axis tilts around the horizontal plane while B-axis rotates around the vertical plane.
Modern equipment from 2024 includes advanced FANUC and Siemens control systems. Shop floor data shows these controllers reduce machining cycles by 22% on average.
Industry Applications
Aerospace manufacturers rely on 5-axis CNC machining services for turbine components with twisted geometries. Medical device companies produce surgical instruments featuring organic curves. Automotive shops machine engine blocks with intricate internal passages.
The aerospace industry accounts for 60% of premium installations. Safety regulations demand extreme precision—a single dimensional error on turbine blades can cause catastrophic failures during flight operations.
Types of Multi-Axis Machining Systems
Choosing the right 5 axis CNC machine depends on understanding how different configurations work.
3-Axis Machining
Traditional equipment cuts along three perpendicular lines only. The spindle stays vertical throughout operations. This setup works adequately for flat components and basic geometries, though operators must manually rotate workpieces to access different sides.
3+2-Axis Machining
These 5 axis CNC machining centers position parts at specific angles, lock the rotation, then machine using three linear axes. Movement happens between operations, not during them. This configuration costs considerably less than continuous five-axis systems while offering substantially more versatility than basic three-axis equipment.

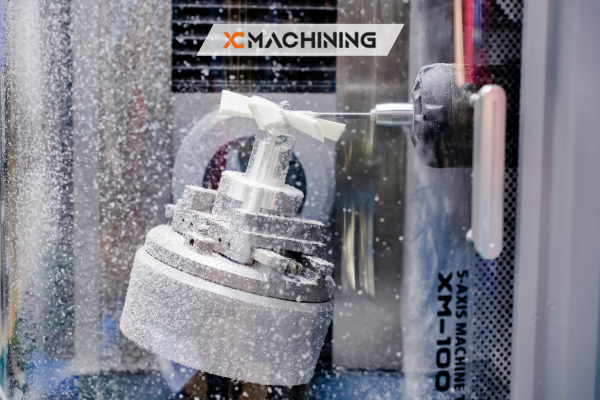

Simultaneous 5-Axis Machining
All five axes move together throughout cutting operations. Tools follow sweeping, curved paths that create flowing surfaces and twisted shapes impossible with other methods. Market data from 2024 shows 58% of newly manufactured units maintain precision below 5 microns.
Benefits of 5-Axis CNC Machining Services
Production facilities document tangible advantages when comparing 5 axis CNC machining against conventional approaches.
Enhanced Precision
Equipment regularly achieves ±0.0008 inch accuracy, with premium systems reaching ±0.0002 inches. Single-setup operations prevent error accumulation that occurs when repositioning components multiple times.
Reduced Production Time
One aerospace supplier documented significant improvements. A structural bracket requiring 12 hours across four separate setups on conventional equipment finished in 5 hours using their 5 axis CNC machine. That represents 58% faster completion.
Superior Surface Finish
Tools maintain optimal cutting angles continuously throughout operations. Surfaces emerge smoother from initial machining, requiring less secondary polishing work. Documented savings reach 20-30% on finishing costs.
Complex Geometry Capabilities
Impeller blades featuring compound curves, deep undercuts requiring special tool access, holes entering from unusual angles—all feasible through five-axis technology. Components previously requiring assembly from multiple pieces now machine as single solid parts.
Cost Analysis and Pricing
Understanding actual expenses helps manufacturers budget realistically.
| Machine Type | Hourly Rate | Setup Cost | Best Applications |
| 3-Axis | $50-$150 | $100-$300 | Basic geometries, large batches |
| 3+2-Axis | $100-$200 | $200-$500 | Medium complexity parts |
| Simultaneous 5-Axis | $150-$300 | $300-$800 | Complex contours, tight tolerances |
Material selection dramatically affects costs. Aluminum runs $3-$5 per pound and machines efficiently. Titanium costs $25-$50 per pound and requires 3-5 times longer cutting duration.
Simple aluminum brackets might total $830 including programming, setup, and machine time. Complex titanium aerospace components could reach $5,100. Ordering 10-20 identical pieces spreads programming expenses across multiple units, decreasing per-part pricing 40-60%.
Choosing the Right 5 Axis CNC Machining Service
Matching capabilities to actual requirements prevents overspending on unnecessary features.
Components featuring work on three or more faces, angled passages, curved surfaces, or tolerances exceeding ±0.002 inches typically benefit from five-axis processing. Simple flat pieces work adequately with basic three-axis equipment at substantially lower cost.
Small production quantities under 50 units with complex features suit 5-axis CNC machining services because single-setup advantages offset higher hourly rates. Large volumes exceeding 100 units often prove more economical on three-axis systems despite multiple setups.
Standard turnaround spans 5-7 days for basic components, extending to 2-3 weeks for intricate parts requiring extensive programming.
Leading 5 Axis CNC Machine Center Manufacturers
Several major companies dominate global markets. These 5 axis cnc machine center manufacturers produce equipment ranging from compact workshop units to industrial-scale production systems.
DMG MORI engineers high-velocity machines featuring spindles exceeding 15,000 RPM. Haas Automation delivers reliable equipment balancing affordability with consistent performance. Mazak produces vertical and horizontal 5 axis cnc machining centers integrating smoothly into automated production environments. Makino specializes in ultra-precision equipment serving aerospace and medical sectors. Hermle manufactures compact systems ideal for toolmaking operations.
These manufacturers collectively supplied 45% of global installations during 2024.
Design Guidelines for Optimal Results
Strategic design decisions reduce manufacturing costs while preventing production complications.
Maintain adequate wall thickness—minimum 0.020 inches for aluminum, 0.030 inches for steel and plastics. Insufficient thickness causes vibration and deflection during cutting.
Incorporate corner fillets rather than sharp internal angles. Cutting tools feature round profiles that naturally create radiused corners. Designing for 0.010-0.125 inch fillets eliminates expensive secondary operations.
Apply stringent tolerances only where functionality demands it. Standard ±0.005 inch tolerances cost nothing extra. Tightening to ±0.001 inches increases expenses 20-40%.
Material Selection and Capabilities
Material properties significantly influence both processing duration and total expenses.
Aluminum alloys machine efficiently with minimal tool wear. The 6061 and 7075 series work excellently for most applications. Titanium Grade 5 provides exceptional strength for critical aerospace components but requires 3-5 times longer cutting duration.
Stainless steel 304 and 316 grades resist corrosion effectively for medical devices. Inconel withstands extreme temperatures in turbine applications. Engineering plastics like PEEK machine rapidly and suit housings requiring chemical resistance.
Quality Control and Certification
Verification credentials matter more than marketing claims when selecting 5 axis CNC machining services.
ISO 9001 establishes baseline quality procedures covering documented processes and regular audits. AS9100 extends ISO 9001 requirements with aerospace-specific standards necessary for aircraft components. ISO 13485 governs medical device manufacturing with regulatory compliance. ITAR registration remains mandatory for defense-related work.
Certified facilities maintain detailed production records and perform regular equipment calibration.
Common Mistakes to Avoid
Several recurring errors increase expenses unnecessarily when ordering parts.
Specifying excessive tolerances across all dimensions drives costs upward without functional benefit. Consult machinists during early design phases rather than after finalizing drawings. Selecting five-axis capability when simpler three-axis methods suffice wastes resources unnecessarily.
Plan fixturing requirements from initial design stages. Components need secure clamping throughout machining operations.
Conclusion
5-axis CNC machining delivers complex components faster and more accurately than conventional manufacturing approaches. Market growth at 6.09% annually reflects aerospace, medical, and automotive sectors discovering expanding applications. Select appropriate machine configurations based on genuine requirements rather than pursuing unnecessary capabilities.
FAQs
What is the main advantage of 5-axis CNC machining over 3-axis?
Complete operations happen in single setups instead of stopping repeatedly to reposition components manually. Production time decreases 40-60% while accuracy improves because parts maintain consistent reference points throughout entire machining cycles.
How much does 5-axis CNC machining cost?
Machine time typically runs $150-$300 hourly. Simple aluminum components might total $800 while complex titanium aerospace parts reach $5,000 or higher. Final expenses include programming time, setup charges, material costs, and finishing operations.
What tolerances can 5-axis machining achieve?
Standard operations maintain ±0.0008 inch accuracy, with high-precision equipment achieving ±0.0002 inches for critical aerospace and medical applications. Single-setup operations prevent error accumulation from repositioning workpieces multiple times.
Which industries use 5-axis CNC machining most?
Aerospace accounts for 60% of premium installations requiring extreme precision. Medical device manufacturing, automotive production, and energy sector facilities comprise most remaining demand. These industries need intricate shapes and stringent tolerances that benefit from advanced capabilities.
How long does 5-axis machining take?
Basic components ship within 5-7 days from initial quote through final delivery. Complex parts require 2-3 weeks for programming development, first-article inspection, and production completion. Rush services deliver within 24-72 hours but increase costs 50-100%.
References
- Technavio. (2024). “Global 5-axis CNC machining centers market 2024-2028.” Market size estimated to grow by USD 792.5 million at CAGR of 6.09%. Retrieved from https://www.prnewswire.com/news-releases/5-axis-cnc-machining-centers-market-to-grow-by-usd-792-5-million-2024-2028-driven-by-self-optimized-machine-cutting-ais-impact-on-market-evolution—technavio-302355135.html
- Market Reports World. (2024). “CNC Machining Center (5-axis) Market Report.” Over 73,000 units of 5-axis CNC machining centers in operational use globally in 2024. Retrieved from https://www.marketreportsworld.com/market-reports/cnc-machining-center-5-axis-market-14716376
- Verified Market Reports. (2025). “5-Axis CNC Machining Centers Market Size Report.” Market valued at USD 7.3 Billion in 2024, forecasted to reach USD 12.5 Billion by 2033 at CAGR of 6.9%. Retrieved from https://www.verifiedmarketreports.com/product/5-axis-cnc-machining-centers-market/
- Emergen Research. (2024). “3-Axis 5-Axis CNC Vertical Machining Center Market.” North America holds 38.2% of global market share in 2024. Retrieved from https://www.emergenresearch.com/industry-report/3-axis-5-axis-cnc-vertical-machining-center-market
