What Are the Most Common CNC Machining Components and Their Functions?

Have you ever wondered how complex metal parts get shaped with such incredible accuracy? Maybe you’ve seen massive milling machines in videos, or perhaps you’ve heard about factories pumping out flawless car parts. Whatever sparked your curiosity, you’re likely searching for clear guidance on which parts in a CNC setup matter most.

The short answer is that a CNC machine relies on essential CNC machining components like the frame, spindle, cutting tools, and a control system to shape materials into precise products. Keeping these components maintained and aligned ensures accurate cuts, smoother finishes, and faster production. Follow each component’s guidelines to get the best outcome.

In this article, we’ll explore the most common CNC machining components, how they work, and why you should care. By the end, you’ll know how each piece fits into the bigger picture of CNC success—no complicated jargon, just simple, helpful info.

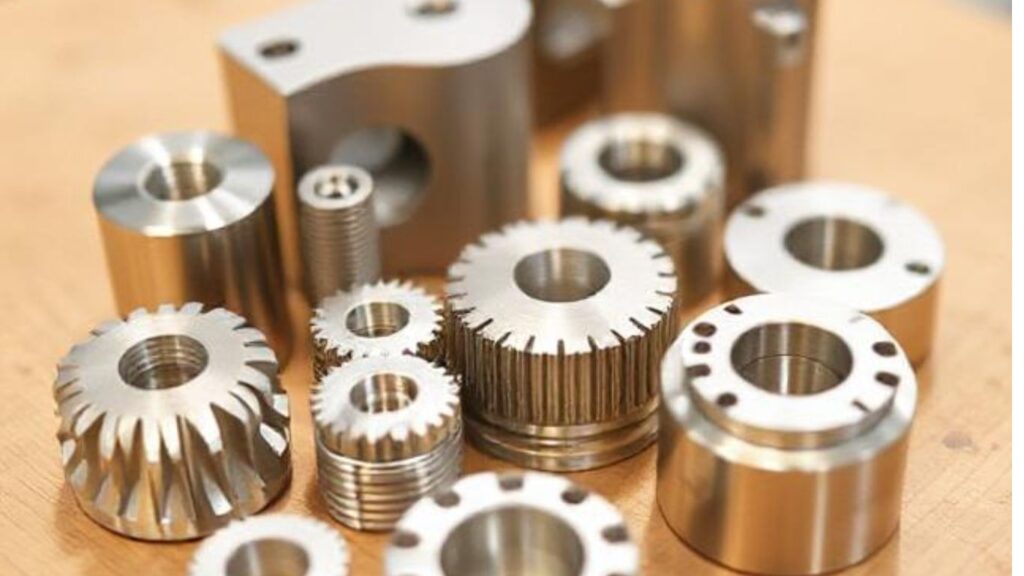

CNC Machining Components: The Foundation Of Precision

This category forms the backbone of any machining setup. Whether you’re dealing with large industrial mills or desktop routers, these CNC machining components are what keep everything steady, efficient, and ready for production. By focusing on their design, you’ll uncover the secret sauce behind quality parts and reliable machine operation.

Cutting Tools

Cutting tools slice through your material. Each tool type has a particular shape and hardness, designed to remove small chips or shavings step by step. Some are for rough cuts, while others ensure a mirror-like finish. Choosing the right tool means less wear, faster cutting, and top-notch results.

Workholding

Workholding devices secure your raw material so it doesn’t move or vibrate during machining. They include vices, clamps, and fixtures that hold the stock. A stable workpiece produces consistent cuts. Without proper workholding, even the best machine can’t guarantee precision or repeatable success.

Spindle

The spindle is the heart of the CNC machining components. It’s the rotating mechanism that holds and spins the cutting tool at high speeds. A quality spindle runs smoothly, reducing vibrations. The spindle’s motor power and speed range affect how quickly and accurately you can shape your material.

Machine Frame And Enclosure

The machine’s frame is the skeleton that keeps everything aligned. It supports the table, spindle, and other CNC Machining Components. If the frame is weak, the machine can vibrate or flex when cutting tough materials. That’s why robust frames often mean improved stability and more accurate results in CNC Machining Components.

Enclosures, on the other hand, help contain chips, coolant, and debris. They also enhance safety by preventing flying metal shards from escaping. These features keep the workshop environment tidier and protect both operators and bystanders. A well-sealed enclosure also reduces noise levels significantly, ensuring a smoother operation of CNC Machining Components.

Control Panel And Computer Interface

A CNC machine’s control panel is one of the most important CNC machining components, and it is where you input commands. It usually has a screen, keypad, or knobs that let you navigate through different settings. Operators use it to move the axes, load programs, and adjust machine parameters on the fly. It’s essentially your direct line of communication with the machine.

The computer interface is the digital side of control. This might be built into the machine or run on an external computer. It processes G-code or other programming languages that tell the machine where to move and at what speed. Without this interface, the machine can’t interpret your design instructions properly.

Tool Changer

Modern CNC setups often include automatic tool changers. These devices hold multiple cutting tools, and they can be quickly switched out according to the job’s instructions. A tool changer saves time because you don’t have to stop the machine to do manual replacements.

Info Box:
Tool changers come in different styles, such as carousel or chain-type. Each variant influences how many tools you can store and how fast the machine can swap them. This is especially handy for complex parts requiring various drill bits, end mills, or taps.

Coolant System

Machining generates friction, and friction generates heat. If a tool overheats, it dulls faster, leading to poor surface finish or even tool breakage. That’s where the coolant system steps in. It sprays or floods cooling fluid onto the cutting zone, reducing temperature and washing away chips.

Coolant also helps lubricate the cutting edge. This lubrication further extends tool life, allowing you to cut at higher speeds without damaging your workpiece. Some systems recirculate coolant through a filtering system, making them more eco-friendly over the long haul.

Drive System

The drive system translates control signals into physical motion. Typically, it includes motors, belts, ball screws, or rack-and-pinion assemblies. When the control panel says, “Move the X-axis,” the drive system powers up and shifts the machine’s table or gantry precisely to the desired coordinates.

Different machines use various drive mechanisms. Some rely on lead screws, which can be more affordable but might experience backlash. Others favor ball screws for their reduced friction and higher accuracy. Regardless of the approach, keeping the drive system tuned is crucial for hitting tight tolerances.

Axis Motors

Axis motors power each movement in a CNC machine. In many setups, you’ll see three main linear axes (X, Y, Z) plus additional rotational axes if the machine is a 5-axis mill or a lathe with a rotating turret. These motors spin and coordinate so that the tool follows precise paths.

Quick Tip:
Some machines use stepper motors, which move in small, discrete steps. Others use servo motors, which offer continuous rotation and real-time feedback. Servo motors are often pricier but can provide better accuracy at higher speeds, making them ideal for professional shops.

Motion Sensors And Feedback

Sensors measure how far each axis has moved, ensuring the machine’s actual position matches the intended path from the G-code. This feedback loop is essential because even the smallest miscalculation can throw off a part’s dimensions.

When the sensor detects a discrepancy, the control system corrects the motor movement automatically. As a result, you can hold extremely tight tolerances. If sensors fail, you risk losing positional awareness, which can ruin an entire workpiece or even cause collisions.

Lubrication System

The lubrication system delivers oil or grease to the machine’s moving parts, ensuring optimal performance for CNC Machining Components. This reduces friction on bearings, ball screws, and linear rails, which is crucial for maintaining precision in CNC Machining Components. Without proper lubrication, these mechanical parts can wear out faster, leading to compromised accuracy and possible breakdowns, affecting the efficiency of CNC Machining Components.

Some CNC setups have automatic lubrication pumps that release measured amounts of lubricant at set intervals. Others rely on manual greasing. Either way, consistent lubrication extends the life of your machine and maintains a smoother movement along each axis.

Chip Management

Machining leaves behind chips, which are tiny or sometimes sizable bits of the material you’re cutting away. If these chips build up, they can jam movements or scratch the surface of your part. That’s why a well-designed chip management system is key to efficient production.

Conveyors, hoppers, or vacuum systems can collect and remove chips during operation. Not only does this keep the workspace tidy, but it also prevents chips from interfering with the tool. As a bonus, some materials, like metal, can be recycled more easily if collected properly.

Power Supply And Electrical Cabinet

The power supply ensures all CNC machining components get the voltage and current they need. An inadequate supply can lead to performance issues, such as motors stalling or the spindle losing torque. That’s why industrial machines often require high-voltage connections.

An electrical cabinet houses drives, circuit boards, and other sensitive electronics. This cabinet shields them from dust, metal shavings, and coolant spray. It’s typically cooled by fans or air conditioning units to maintain an optimal operating temperature, extending the electronics’ lifespan.

Safety Interlocks And Enclosures

Modern CNC machines include safety features like door locks, emergency-stop buttons, and sensors that detect open panels. These interlocks prevent operation when someone might reach into a dangerous area. Even though CNC machines run autonomously, human safety remains a top priority.

Danger Box:
Never bypass these safety measures. The risk isn’t just hardware damage—it’s a serious injury. If an enclosure door is open, the machine should not start. Keep your safety systems functioning at all times, and educate users on their importance.

Software Interface And Programming

The software transforms your design into machine-ready instructions. Engineers or operators use CAD (Computer-Aided Design) to create part models then CAM (Computer-Aided Manufacturing) software to generate toolpaths. Finally, the software exports G-code, telling each CNC machining component where to move, how fast, and which tool to use.

Fact Box:
Some popular CAM solutions include Fusion 360, Mastercam, and SolidCAM. These tools allow you to preview toolpaths, detect possible collisions, and optimize cutting strategies. By adjusting variables in software, you can significantly improve machining efficiency and product quality.

Machine Table And Work Surface

The machine table, also known as the bed, supports the workpiece. It must remain rigid and level, even under heavy loads. Some tables come with T-slots that let you clamp materials at different angles. Others use vacuum systems to hold flat sheets securely.

A stable table ensures that the cutting tool meets the material at consistent angles. If the surface is off-level, your part might end up thicker or thinner in certain spots. Regularly checking for alignment and wear on the table is crucial to maintain accuracy.

Machine Guards And Shields

Machine guards are physical barriers placed near rotating or moving parts, such as the spindle or tool holder. They’re designed to keep hands, hair, or loose clothing away from potential harm. Shields can also block chips or coolant spray.

Suggestion Box:
Even if your workplace has robust guarding, don’t get too comfortable. Always wear appropriate protective gear like safety glasses, especially when you’re near the cutting zone. A small oversight can lead to a big accident in seconds.

Maintenance Tools And Diagnostics

Most industrial CNC machines come with built-in diagnostic screens or indicator lights. These help you spot issues quickly, like a servo motor fault or a lubrication pump malfunction. Additionally, machine manuals often recommend specialized tools for tasks such as tramming the spindle or aligning the axes.

Regular maintenance extends machine life and prevents catastrophic breakdowns. If you ignore warning signs, a small glitch can escalate into a serious, costly repair. Paying attention to diagnostic features and adhering to recommended service intervals ensures every CNC machining component continues working smoothly.

Adding A Handy Table

Here’s a quick reference table summarizing core CNC components and their primary functions:

Use this as a starting point when diagnosing issues or planning your setup. Each piece works in harmony to deliver precise, repeatable production. Keep each part well-maintained for the best results.

Conclusion

From the sturdy frame to the crucial electronics that bring it all together, CNC machining components are the building blocks of precise, efficient manufacturing. These CNC machining components work together to hold your material steady, move your cutting tool accurately, and safely carry away chips or coolant. By understanding how these parts function, you can better maintain, optimize, and troubleshoot your CNC machine.

When all these CNC machining components operate correctly, you’ll see fewer errors and smoother workflows. Keeping them clean, lubricated, and properly calibrated is the surefire way to extend your machine’s life and achieve consistent, top-quality parts. Ultimately, it’s about knowing each component’s role so you can maximize your results.

FAQ

How often should I service my CNC machine?
Regularly consult your machine’s manual. Most manufacturers recommend inspecting lubrication, drive systems, and alignment every few weeks or months, depending on usage. Scheduling minor checkups prevents major repairs later.

Can I upgrade older machines with a new control panel?
Yes, in many cases. Retrofits allow you to install modern controllers and software on older mechanical structures. This can boost accuracy, add features, and extend the machine’s usefulness without requiring a full replacement.

Which is more accurate: servo motors or stepper motors?
Servos generally offer higher accuracy and better torque at speed. Steppers are simpler, cheaper, and work fine for many hobby or light industrial tasks. The choice depends on your budget, speed requirements, and precision targets.
