Gas Welding Process: Understanding The Basics Of Oxy-Fuel Welding

Have you ever stared at two pieces of metal and wondered, “How in the world do people fuse these together so they never come apart?” It can be puzzling to imagine that flames can help make such secure bonds. But that’s exactly what the gas welding process does when using oxy-fuel welding techniques.

In this article, we’ll walk through everything you need to know about oxy-fuel welding, from its basic principles to the gear involved, plus tips on safety, techniques, and troubleshooting. By the end, you’ll feel far more comfortable tackling your own gas welding process projects.

The Fundamentals Of Gas Welding Process

In the early days, factories relied on mechanical or manually operated machines, which took time and skill to run. Then, computers took over. By translating designs into coded instructions, automated machines soared in popularity, delivering greater accuracy and speed than ever before.

Early Origins And Practical Advantages

The gas welding process began in the early 1900s as a portable way to fuse metals. Its simplicity attracted welders, who appreciated its flame-based method for heating and melting. Even with modern equipment available, many still rely on oxy-fuel welding for diverse repairs.

Oxygen And Fuel Gas Partnership

A balanced combination of oxygen and fuel gas, often acetylene, creates a flame hot enough to melt steel. The fuel gas provides the combustible material, while oxygen intensifies the heat. This partnership ensures a consistent, controllable flame for gas welding process various metal fabrication techniques thicknesses.

Core Components And Their Purpose

Oxy-fuel welding requires basic gear: cylinders for oxygen and fuel gas, regulators to control pressure, hoses that channel gases, and a torch to direct the flame. These elements work together, allowing welders to adjust heat output and guide melted metal prototypes effectively.

Understanding Oxy-Fuel Equipment Setup

Every solid weld hinges on the right arrangement of gear. When dealing with the gas welding process, you’ll typically have two cylinders—one for oxygen, one for a fuel gas—connected via hoses to regulators. The regulators ensure the gases are at suitable pressures. From there, everything passes into a welding torch, which you manually control.

It’s crucial to follow the color-coding standards on hoses: generally, red for fuel gases and green for oxygen. Keeping track of which gas line is which reduces the chance of mixing them up—a mistake that could lead to big problems. If your local guidelines differ, adjust accordingly and always read the labels.

Types Of Oxy-Fuel Flames

When you mix oxygen and fuel gas, three main types of flames can appear: neutral, carburizing, and oxidizing. Recognizing them helps you shape your weld and minimize defects.

• Neutral Flame: Has a balanced mix of oxygen and fuel gas. It’s the most common choice for gas welding process steel.
• Carburizing Flame: Has excess fuel gas. It can add carbon to the weld pool, which sometimes helps in specific tasks like welding high-carbon steels.
• Oxidizing Flame: Has extra oxygen. This flame is sometimes needed for brazing but can make steel welds brittle if used incorrectly.

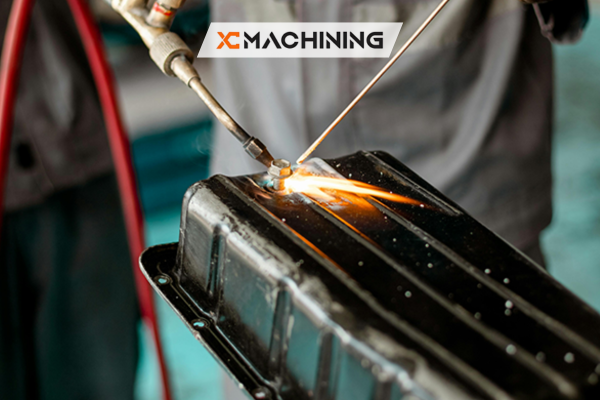

Filler Rods And Their Role

Filler rods (sometimes called filler metals) provide additional material to the weld joint. You push these rods into the molten pool created by the flame so that they melt and fuse with the base sheet metal welding. The type of filler rod you choose should match or complement the metal you’re welding. This helps ensure the final bond has adequate strength and a consistent chemical makeup.

Choosing the correct diameter is important. A rod that’s too thick might require excessive heat, slowing down your progress. A rod that’s too thin might melt too quickly, leaving irregular weld seams. If you’re unsure, consult a welding handbook or ask a more seasoned welder for tips.

Gas Welding Process Vs. Other Welding Methods

There’s no shortage of gas welding process—MIG, TIG, stick welding, and more. So, why pick oxy-fuel?

1. Portability: You don’t need an electrical supply, making it handy for remote repairs.
2. Simplicity: The setup is fairly straightforward.
3. Cost-Effective: Equipment can be more affordable, especially for occasional jobs.
4. Multi-Use: Beyond welding, oxy-fuel gear can also cut, braze, and heat-treat metals.

Sure, MIG or TIG might give higher accuracy in certain jobs, but for folks who want a flexible, easy-to-transport solution, the gas welding process is tough to beat.

Basic Techniques For Oxy-Fuel Welding

Welding with oxy-fuel isn’t just about pointing a flame at metal. Technique matters. Here are some foundational tips to keep in mind:

• Torch Angle: Typically, hold it at about 45 degrees to the workpiece.
• Travel Speed: Move the torch steadily so the metal melts evenly.
• Circular Motion: Using small circles or figure-eight motions can help spread the heat uniformly.
• Add Filler Gradually: Dip the rod carefully into the molten pool, letting it merge smoothly.

These fundamentals help maintain consistent bead shape and penetration. The more you practice, the more natural it becomes to control the torch and filler rod.

Gas Welding Safety

Anytime flammable gases are involved, safety is non-negotiable. Here’s what you need to be aware of:

Danger Box Caution: Always store gas cylinders upright and securely fastened to prevent tipping. Oxygen tanks must be kept away from oils or greases, as these substances can ignite spontaneously when in contact with concentrated oxygen.

• Protective Clothing: Wear flame-resistant gloves, apron, and closed-toe shoes.
• Eye Protection: Use goggles or a face shield with the correct lens shade to block harmful light and sparks.
• Proper Ventilation: Gas welding process fumes aren’t healthy to breathe, so make sure the workspace is well-aired.
• Check For Leaks: Periodically test hoses and connections with a soapy water solution. Bubbles can reveal gas leaks.

Staying mindful of these steps can keep you and others out of harm’s way while welding.

Common Mistakes To Avoid

Even pros slip up at times. But being aware of typical errors can help you sidestep them:

1. Wrong Flame Type: Using an oxidizing flame on mild steel can lead to weak welds.
2. Unclean Metal Surfaces: Dirt or rust can weaken welds, so always clean thoroughly.
3. Rushing The Weld: Moving too quickly results in inadequate fusion. Slow and steady often wins.
4. Overheating: While you need enough heat to sheet metal prototyping, going too hot can cause warping or burn-through.

If something looks off—like a weld bead that’s porous or uneven—stop and figure out what’s causing the issue. A quick fix now is better than redoing a large section later.

Best Practices For Strong Welds

Gas welding process success depends on both knowledge and hands-on practice. Here are a few best practices:

• Preheat Thicker Metals: If you’re working on hefty sections, warming them helps achieve uniform penetration.
• Maintain Consistent Torch Distance: Keeping a steady gap between the torch tip and workpiece gives you stable heat.
• Use Proper Rod Angles: If the rod is angled too sharply, you might push molten metal away, leading to a lopsided weld.
• Master Puddle Control: Focus on how the molten pool behaves. Once you can guide it, you’ll produce neater beads.

These suggestions help build muscle memory and welding intuition, ensuring you handle various scenarios confidently.

Gas Welding In Various Industries

Oxy-fuel welding doesn’t just belong in a hobbyist’s garage. Many sectors still use it:

• Automotive: For body repair work or custom exhaust systems.
• Maintenance And Repair: Farms, construction sites, or shipyards might fix broken parts on the spot.
• Art And Sculptures: Artists often use gas welding for metal art projects due to its adaptability.
• Plumbing: Brazing copper pipes can be done with similar oxy-fuel setups.

While advanced methods like MIG and TIG often dominate large-scale factories, the gas welding process remains appreciated for smaller, mobile, or specialized tasks.

Metal Preparation Matters

One key to a strong weld is ensuring the base metal fabrication technologies is clean. Rust, paint, or grease can contaminate the weld pool, making it brittle or porous.

• Degrease: Use a safe solvent to remove oily residues.
• Wire Brushing: Scrub off rust or old paint.
• V-Groove: For thicker joints, bevel the edges. This helps the flame access deeper into the joint.

Taking a few minutes to prepare surfaces can spare you from redoing welds that fail unexpectedly down the line.

Maintenance Of Oxy-Fuel Equipment

Your gas welding process torch, regulators, and hoses need routine upkeep. Here are some basic tips to ensure everything runs smoothly:

Quick Tip: A small brush and compressed air can clear away debris from torch tips. Always turn off gas supplies before performing any cleaning.

• Check O-rings: Damaged or cracked O-rings can lead to leaks.
• Inspect Hose Fittings: Make sure clamps and connections are snug.
• Dust Off Cylinders: Keep your storage area free from dirt or chemicals that might corrode cylinder surfaces.
• Regular Testing: Gas companies often have guidelines for cylinder testing intervals. Follow them to stay safe.

A bit of care keeps your setup functional and prolongs the life of expensive components.

Advantages Of The Gas Welding Process

This might be a good time to emphasize some positives. Here’s a table summarizing key advantages that set the gas welding process apart from alternative methods:

Limitations And Considerations

No process is perfect, and gas welding process has its share of constraints:

• Slower Than Some Methods: MIG or TIG often outpace oxy-fuel for mass production.
• Requires Skilled Hands: You have to manually control the flame, filler rod, and angle. Practice is essential.
• Limited Metal Thickness: Heavy structural components might be more suited to advanced arc welding techniques.
• Potential For Gas Hazards: Handling flammable gases calls for extra diligence.

Understanding these boundaries helps you decide whether oxy-fuel is right for your project or if a different approach would be more efficient.

Conclusion

The gas welding process has been around for generations, proving itself as a versatile method for joining metals in a variety of settings. Its portability, straightforward equipment setup, and flexibility keep it relevant even when modern methods pop up. Whether you’re fixing a broken tractor part on a farm or shaping a metal sculpture in your garage, the gas welding process remains a convenient choice.

If you’re new to welding, don’t be afraid to try it. Just follow safety guidelines, practice your torch control, and respect the heat of that bright flame. Before long, you’ll be creating neat, solid welds that hold up to the tests of everyday use.

FAQs

Is gas welding suitable for beginners?

Yes, many beginners find it approachable since it doesn’t require complex electrical equipment. Just focus on mastering flame control, safety, and the basics of handling filler rods.

What’s the difference between brazing and welding using oxy-fuel?

Brazing heats metal surfaces to bond them with a filler that has a lower melting temperature. Gas welding process melts the base metals themselves. Brazing often creates a less strong joint, but it’s helpful for tasks like joining copper pipes.

How do I pick the right tip size for my torch?

The correct tip size depends on metal thickness and the job’s heat requirements. Consult the torch manufacturer’s guidelines or a gas welding process handbook for recommended settings based on material and thickness.

Can I use oxy-fuel welding on stainless steel?

It’s possible, but it can be tricky. Stainless steel demands close attention to flame settings and filler selection. Some welders prefer TIG for stainless because it offers better control over heat input.
